シミュレーション
ネットワーク技術者はスイッチを交換し、接続されたデバイスが正しいネットワークに接続できるようにスイッチを再構成する必要があります。
説明書
スイッチ 1 およびスイッチ 3 の適切なポートをクリックして、正しい設定を確認または再構成します。
* 各デバイスが正しく関連付けられたネットワークのみにアクセスするようにします
* 未使用のスイッチポートをすべて無効にします
* スイッチ間のフォールトトレラント接続が必要
* 上記の要件を満たすために必要な変更のみを行ってください
シミュレーションの初期状態に戻したい場合は、[すべてリセット] ボタンをクリックしてください。



正解:
See the explanation for this solution.
Explanation

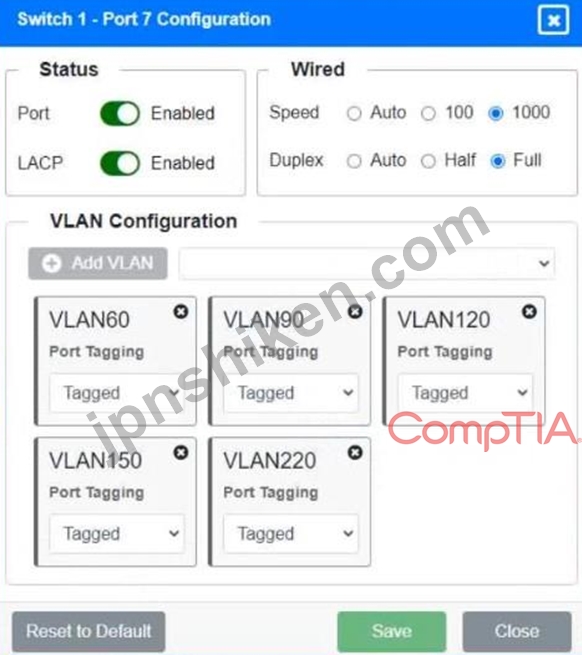

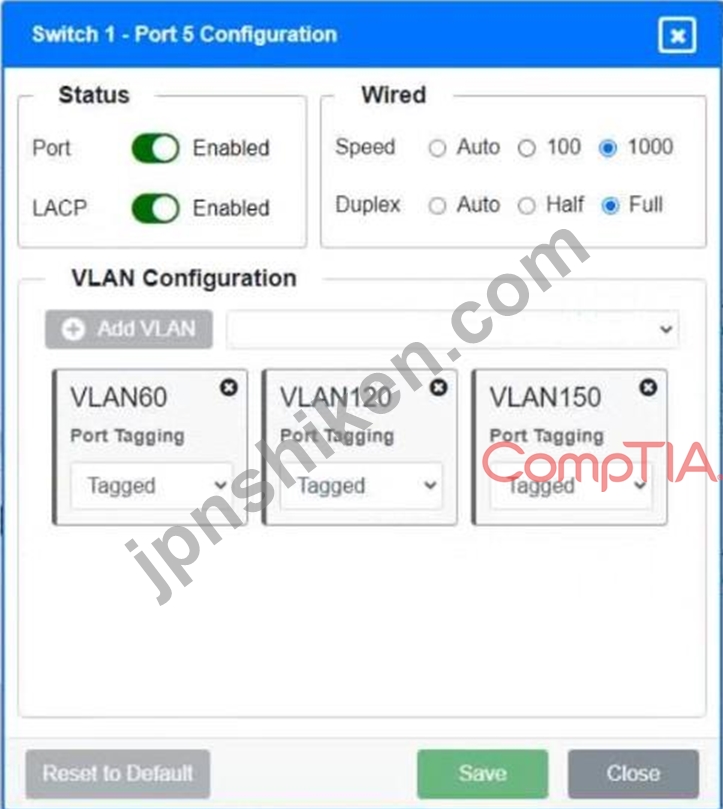

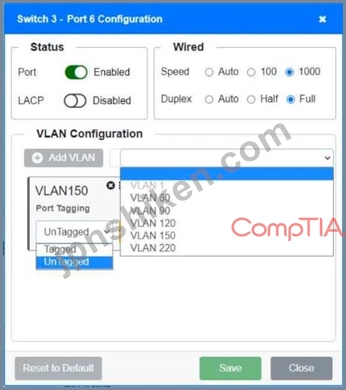

Switch 1 and Switch 2 is the only two switches that can be configured. Only switches linked together with there switch ports needs to be "tagged" and "LACP" needs to be enabled. The other ports must be untagged with no LACP enabled. You only need to assign the correct vlan via each port. 'Speed and Duplex' needs to be Speed=1000 and Duplex=Full, with is by default.
https://resources.infosecinstitute.com/topic/what-are-tagged-and-untagged-ports/
