account1 という名前の Azure Cosmos DB Core (SQL) API アカウントがあります。

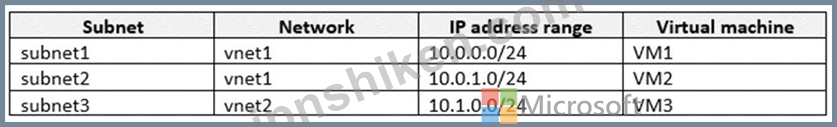

次の表に示す Azure 仮想ネットワークとサブネットがあります。

vnet1 ネットワークと vnet2 ネットワークは、仮想ネットワーク ピアを使用して接続されます。
account1 のファイアウォールと仮想ネットワークの設定は、図に示すように構成されています。

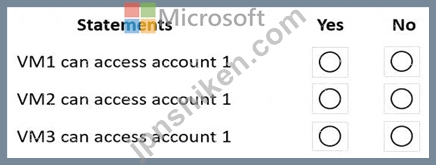

次の各ステートメントについて、そのステートメントが true の場合は [はい] を選択します。それ以外の場合は、「いいえ」を選択します。
注: 正しく選択するたびに 1 ポイントの価値があります。

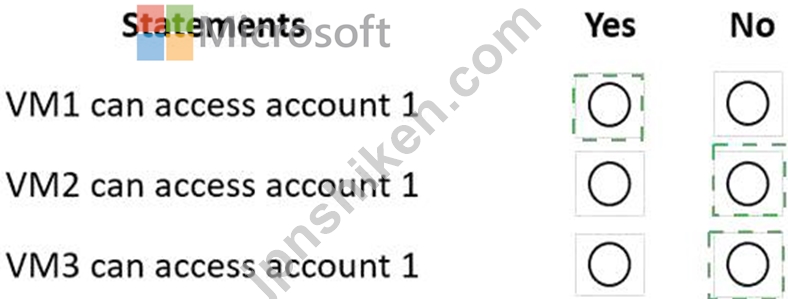

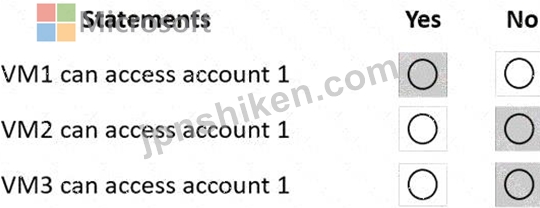

正解:

Explanation:

Box 1: Yes
VM1 is on vnet1.subnet1 which has the Endpoint Status enabled.
Box 2: No
Only virtual network and their subnets added to Azure Cosmos account have access. Their peered VNets cannot access the account until the subnets within peered virtual networks are added to the account.
Box 3: No
Only virtual network and their subnets added to Azure Cosmos account have access.
Reference: https://docs.microsoft.com/en-us/azure/cosmos-db/how-to-configure-vnet-service-endpoint
