ホットスポットの質問
シナリオ
トポロジーを参照してください。会社は、ポイントツーポイントシリアルリンクを使用して、メインオフィスを他の3つのリモートブランチオフィスに接続することを決定しました。
メインオフィスとリモートブランチオフィスにあるルータ間のOSPF隣接関係の問題をトラブルシューティングして解決する必要があります。
適切なshowコマンドを使用して問題をトラブルシューティングし、4つの質問すべてに答えてください。
説明書
デバイスでCisco IOSコマンドを入力して、ネットワーク操作を確認し、複数選択の質問に答えます。
このタスクでは、デバイスの構成は必要ありません。
デバイスをクリックして、デバイスのコンソールにアクセスします。コンソールまたはイネーブルパスワードは必要ありません。
複数選択の質問にアクセスするには、トップパネルの左側にある番号付きのボックスをクリックします。
このタスクには4つの選択肢があります。 [次へ]ボタンをクリックする前に、4つの質問すべてに必ず答えてください。

R1# show running-config
interface Loopback0
description ***Loopback***
ip address 192.168.1.1 255.255.255.255
ip ospf 1 area 0
!
interface Ethernet0/0
description **Connected to R1-LAN**
ip address 10.10.110.1 255.255.255.0
ip ospf 1 area 0
!
interface Ethernet0/1
description **Connected to L2SW**
ip address 10.10.230.1 255.255.255.0
ip ospf hello-interval 25
ip ospf 1 area 0
!
log-adjacency-changes
R2# show running-config
R2
!
interface Loopback0
description **Loopback**
ip address 192.168.2.2 255.255.255.255
ip ospf 2 area 0
!
interface Ethernet0/0
description **Connected to R2-LAN**
ip address 10.10.120.1 255.255.255.0
ip ospf 2 area 0
!
interface Ethernet0/1
description **Connected to L2SW**
ip address 10.10.230.2 255.255.255.0
ip ospf 2 area 0
!
router ospf 2
log-adjacency-changes

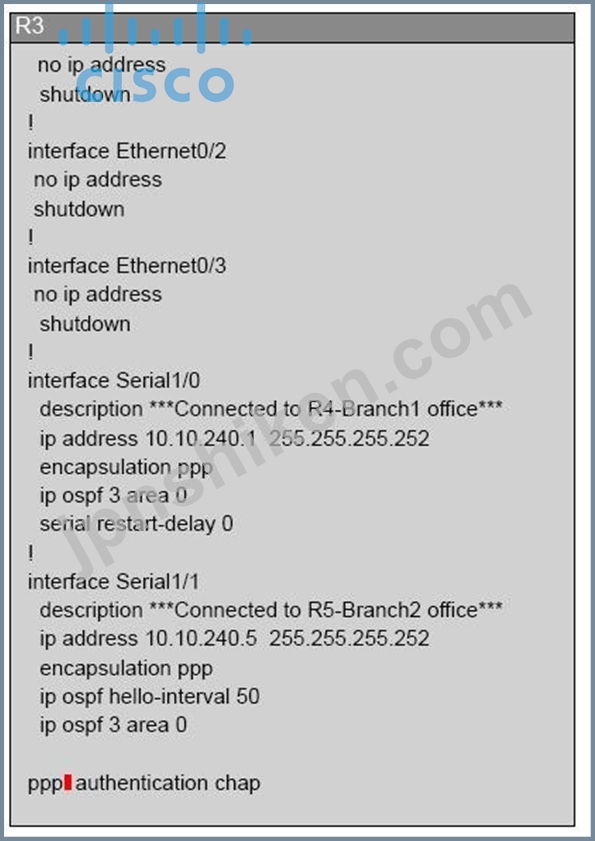

R3# show running-config
R3
username R6 password CISCO36
!
interface Loopback0
description **Loopback**
ip address 192.168.3.3 255.255.255.255
ip ospf 3 area 0
!
interface Ethernet0/0
description **Connected to L2SW**
ip address 10.10.230.3 255.255.255.0
ip ospf 3 area 0
!
interface Serial1/0
description **Connected to R4-Branch1 office**
ip address 10.10.240.1 255.255.255.252
encapsulation ppp
ip ospf 3 area 0
!
interface Serial1/1
description **Connected to R5-Branch2 office**
ip address 10.10.240.5 255.255.255.252
encapsulation ppp
ip ospf hello-interval 50
ip ospf 3 area 0
!
interface Serial1/2
description **Connected to R6-Branch3 office**
ip address 10.10.240.9 255.255.255.252
encapsulation ppp
ip ospf 3 area 0
ppp authentication chap
!
router ospf 3
router-id 192.168.3.3
!

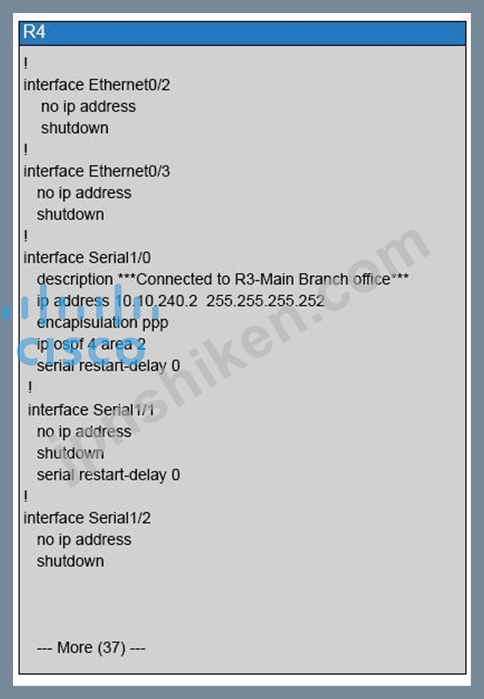

R4# show running-config
R4
!
interface Loopback0
description **Loopback**
ip address 192.168.4.4 255.255.255.255
ip ospf 4 area 2
!
interface Ethernet0/0
ip address 172.16.113.1 255.255.255.0
ip ospf 4 area 2
!
interface Serial1/0
description **Connected to R3-Main Branch office**
ip address 10.10.240.2 255.255.255.252
encapsulation ppp
ip ospf 4 area 2
!
router ospf 4
log-adjacency-changes
R5# show running-config
R5
!
interface Loopback0
description **Loopback**
ip address 192.168.5.5 255.255.255.255
ip ospf 5 area 0
!
interface Ethernet0/0
ip address 172.16.114.1 255.255.255.0
ip ospf 5 area 0
!
interface Serial1/0
description **Connected to R3-Main Branch office**
ip address 10.10.240.6 255.255.255.252
encapsulation ppp
ip ospf 5 area 0
!
router ospf 5
log-adjacency-changes
R6# show running-config
R6
username R3 password CISCO36
!
interface Loopback0
description **Loopback**
ip address 192.168.6.6 255.255.255.255
ip ospf 6 area 0
!
interface Ethernet0/0
ip address 172.16.115.1 255.255.255.0
ip ospf 6 area 0
!
interface Serial1/0
description **Connected to R3-Main Branch office**
ip address 10.10.240.10 255.255.255.252
encapsulation ppp
ip ospf 6 area 0
ppp authentication chap
!
router ospf 6
router-id 192.168.3.3
!
An OSPF neighbor adjacency is not formed between R3 in the main office and R4 in the Branch1 office. What is causing the problem?
